Exchange Sync Utility

This topic provides an overview of Exchange Sync Utility and how to install the utility.

What is Exchange Sync Utility?

Exchange Sync Utility allows existing bookings in EMS to be synchronized with configured Exchange resource mailboxes. EMS for Microsoft Exchange will automatically synchronize new bookings once rooms and resources are configured, but existing bookings will not automatically be synchronized. The Exchange Sync Utility can push those existing bookings to the corresponding Exchange resource mailbox.

Existing customers already using Exchange resource mailboxes will need to resolve conflicting Exchange appointments prior to synchronization. Synchronization issues should be resolved in Exchange and conflicts should be checked again until all issues are resolved.

Install Exchange Sync Utility

The Exchange Sync Utility is installed in the Platform API directory. The utility does not need to be accessed from the directory running Platform Services. The Platform API can be installed locally to utilize Exchange Sync Utility. Users must have write permission to the directory where the utility is being installed for the creation of reports.

To install the Exchange Sync Utility:

  1. Open a Command Prompt and navigate to Platform API directory.

  2. Type exchangesync to see a list of commands.

Commands for Exchange Sync Utility

Commands



-List

List the bookings Exchange Sync Utility will send to Exchange before synchronization. This can be written to a .csv file to reference all bookings and potential conflicts.

-Sync

Synchronize EMS bookings to Exchange.

-SyncOne

Synchronize a single booking to Exchange.

-Import

Import room and resource mailboxes into EMS. The format utilizes the ID of the room or resource and the SMTP mail address in exchange.

-Rooms

View a list of rooms and their configured mailboxes. This can be written to a .csv file to reference the configurations.

-Resources

View a list of resources and their configured mailboxes. This can be written to a .csv file to reference the configurations.

Syntax for Exchange Sync Utility

Syntax



List

exchangesync.exe -exec=list -url=<platform url> -user=<username> \ -pass=<password>
[-csv=<out.csv>]

Sync

exchangesync.exe -exec=sync -url=<platform url> -user=<username> \ -pass=<password>
[-csv=<out.csv>] [-bookings=<1,2,3...>]

Import

exchangesync.exe -exec=import -url=<platform url> -user=<username> \ -pass=<password>
-rooms=<rooms.csv> -resources=<resources.csv>

Rooms

exchangesync.exe -exec=rooms -url=<platform url> -user=<username> \ -pass=<password>
[-csv=<out.csv>]

Resources

exchangesync.exe -exec=resources -url=<platform url> -user=<username> \ -pass=<password> [-csv=<out.csv>]

Parameters for Exchange Sync Utility

Parameters



-exec=<command>

-url=<platform url>

-user=<username>



The command to run

The EMS Platform API url

Username for authentication

Must have web admin privileges.

-pass=<password>

-bookings=<booking ids>

-start=<datetime>



The password for authentication

Comma separated list of booking IDs to sync

Limit sync items to after this date and time. Requires -end

Example:  - format 2008-09-08T22:47:31-07:00

-end=<datetime>



Limit sync items to before this date and time. Requires -start

Example: - format 2008-09-08T22:47:31-07:00

-rooms=<rooms.csv>

-resources=<resources.csv>

-csv=<output.csv>

CSV input file for room import

CSV input file for resource import

CSV output file

The CSV output is generated in the directory where the Exchange Sync Utility is located. Write access is required. The CSV input file should be in the directory where the Exchange Sync Utility is located. Read access is required.

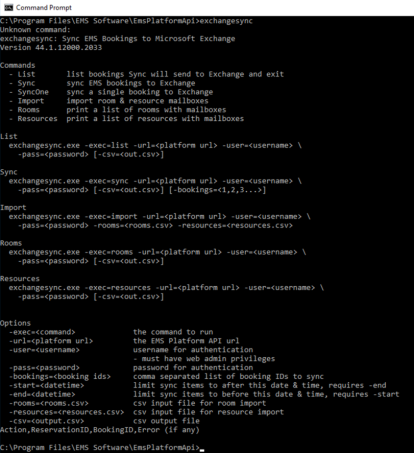

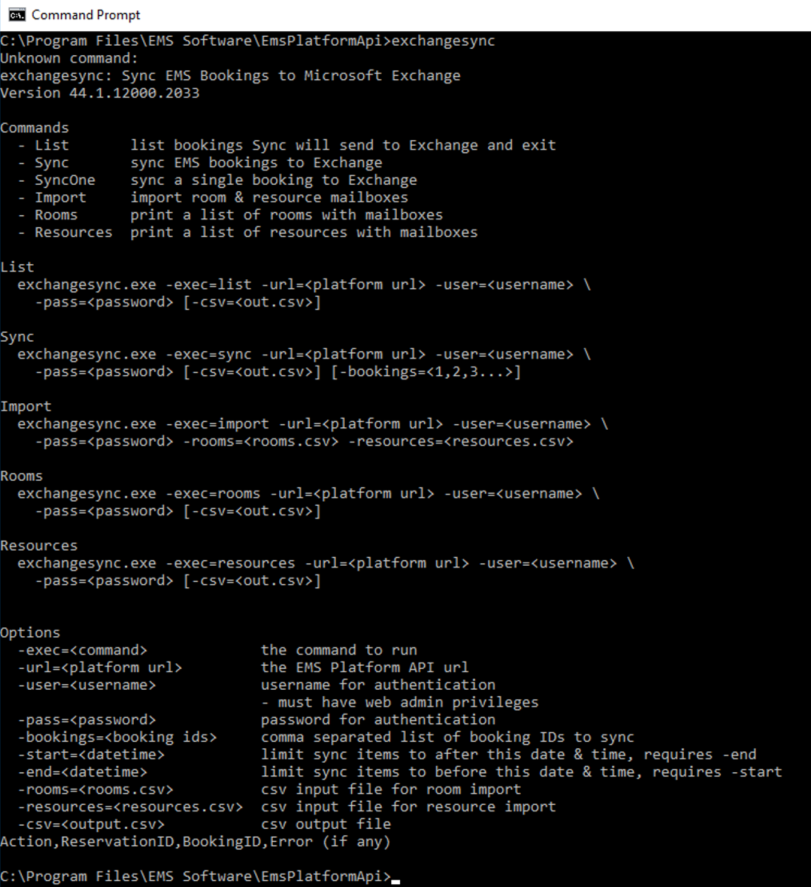

Commands for Exchange Sync Utility in Command Prompt
